Chain & Sprocket Machines are industrial systems used to produce chains, sprockets, and related drive components that transfer motion and power between rotating shafts. These components are commonly found in motorcycles, bicycles, conveyor systems, agricultural equipment, and factory machinery. The manufacturing process combines metal shaping, cutting, heat treatment, and precision finishing to ensure that every tooth, link, and pitch fits accurately.
The idea behind these machines comes from the need for reliable mechanical power transmission. Long before electronic drive systems became common, chains and sprockets were widely used because they could transfer force efficiently over short and medium distances. Today, they remain important in both industrial and transport applications.

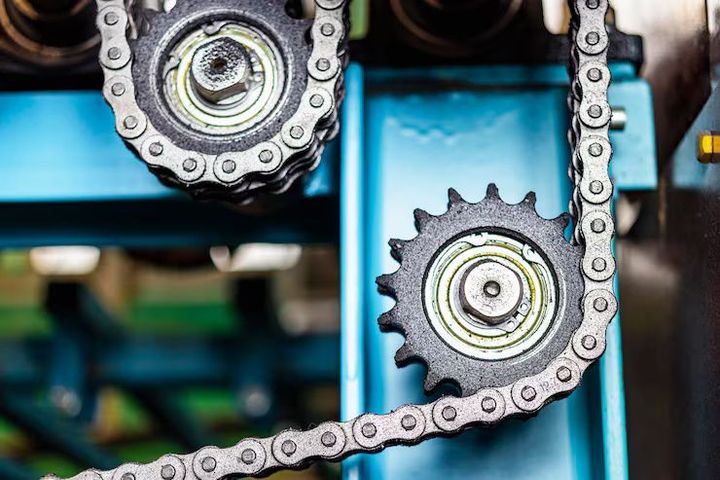

In simple terms, a chain works as a series of connected metal links, while a sprocket is a toothed wheel that engages with the chain. Chain & Sprocket Machines are designed to produce these parts with consistent dimensions so that movement remains smooth and wear is reduced.
How They Work
The working principle of Chain & Sprocket Machines usually involves multiple stages:
- Raw material preparation: Steel bars, rods, or plates are selected based on required strength.
- Cutting and shaping: CNC cutters, hobbing machines, and stamping units shape sprocket teeth and chain links.
- Drilling and punching: Holes and joint spaces are created for pins and rollers.
- Heat treatment: Hardening improves durability and resistance to friction.
- Finishing and inspection: Grinding, polishing, and dimensional checks ensure precision.
Common Machine Types
| Machine Type | Main Function | Common Use |
|---|---|---|
| Sprocket Hobbing Machine | Cuts sprocket teeth | Motorcycles, conveyors |
| Chain Link Forming Machine | Shapes chain links | Roller chains |
| Heat Treatment Furnace | Hardens metal parts | Industrial chains |
| CNC Milling Machine | Precision shaping | Custom sprockets |
| Inspection Machine | Measures dimensions | Quality control |
Importance
Chain & Sprocket Machines matter because they support many everyday systems that people rely on, often without noticing. From two-wheelers and industrial conveyors to farm tools and packaging lines, these machines help produce components that keep mechanical systems moving.
For the general public, this topic connects to transportation, manufacturing, and supply chains. A large number of products depend on chain-driven systems, including motorcycles, escalators, industrial lifts, and automated warehouses.
These machines also help address practical challenges such as:
- maintaining consistent product dimensions
- reducing mechanical failure
- improving machine lifespan
- supporting mass production
- enabling interchangeable parts
Without accurate manufacturing, even a small variation in tooth spacing or chain pitch can lead to noise, faster wear, or complete drive failure.
Recent Updates
Recent developments from 2024–2026 show that Chain & Sprocket Machines are increasingly influenced by automation, material innovation, and digital monitoring.
A major trend is the use of smart manufacturing systems. Many industrial setups now include sensors that monitor vibration, wear, and alignment in real time. This helps reduce downtime through predictive maintenance.
Another visible trend is the growing use of lightweight but durable materials, including advanced steel alloys and composite-based components for selected applications. These materials help improve performance while maintaining strength.
Automation has also become more common in manufacturing lines. CNC-controlled cutting, robotic loading systems, and automated inspection units are increasingly used to improve dimensional accuracy and production consistency.
In industries such as two-wheelers and material handling, the demand for chain and sprocket systems continues to remain steady, especially in Asia-Pacific manufacturing regions.
Laws or Policies
The manufacturing of Chain & Sprocket Machines and their output is shaped by industrial safety standards, machinery regulations, and quality norms.
In India, this area is generally influenced by:
Industrial Safety Rules
Factories operating these machines are subject to the Factories Act and occupational safety rules, which cover worker protection, machine guarding, ventilation, and emergency shutdown systems.
BIS and Quality Standards
Many mechanical components follow standards issued by the Bureau of Indian Standards (BIS) for dimensions, tolerances, and material strength. These standards help ensure that sprockets and chains from different manufacturers remain compatible.
Machinery Safety Regulations
Recent machinery-focused quality control regulations in India show a broader move toward stricter compliance for industrial equipment and machine components.
Environmental Compliance
Heat treatment furnaces, lubricants, and metal finishing units may also need to follow pollution control norms related to emissions, waste oil disposal, and metal residue handling.
Tools and Resources
Several tools and resources help people understand Chain & Sprocket Machines and related manufacturing processes.
Design and Engineering Software
Common platforms include:
- AutoCAD for 2D technical drawings
- SolidWorks for 3D component modeling
- Autodesk Fusion 360 for design and simulation
These tools help visualize sprocket tooth profiles, chain pitch dimensions, and machine layouts.
Calculation Tools
Useful calculators include:
- gear ratio calculators
- chain pitch calculators
- torque transmission calculators
- RPM conversion tools
These are commonly used in mechanical design and educational settings.
Standards and Technical References
Helpful information sources include:
- BIS standards databases
- ISO mechanical standards
- manufacturer technical manuals
- engineering textbooks on machine design
FAQs
What are Chain & Sprocket Machines used for?
Chain & Sprocket Machines are used to manufacture chains, sprockets, and related drive components for vehicles, conveyor systems, and industrial equipment.
How do Chain & Sprocket Machines work?
They work through a sequence of metal cutting, shaping, drilling, hardening, and finishing processes. The aim is to create precisely matched chain links and toothed wheels.
Where are Chain & Sprocket Machines commonly used?
They are commonly used in automotive manufacturing, factory automation, agricultural machinery, packaging systems, and heavy industrial plants.
Why is precision important in Chain & Sprocket Machines?
Precision ensures smooth movement, proper chain engagement, reduced friction, and longer component life. Even small dimensional errors can affect performance.
Are Chain & Sprocket Machines still relevant today?
Yes. Despite advances in alternative drive systems, chains and sprockets continue to be widely used because of their strength, reliability, and suitability for power transmission.
Conclusion
Chain & Sprocket Machines play an important role in modern manufacturing by producing essential mechanical power transmission components. Their working principles are based on precision metal processing, shaping, and quality control. Recent developments show increasing use of automation, smart monitoring, and improved materials. These machines continue to support transportation, industrial operations, and mechanical systems used in everyday life.
