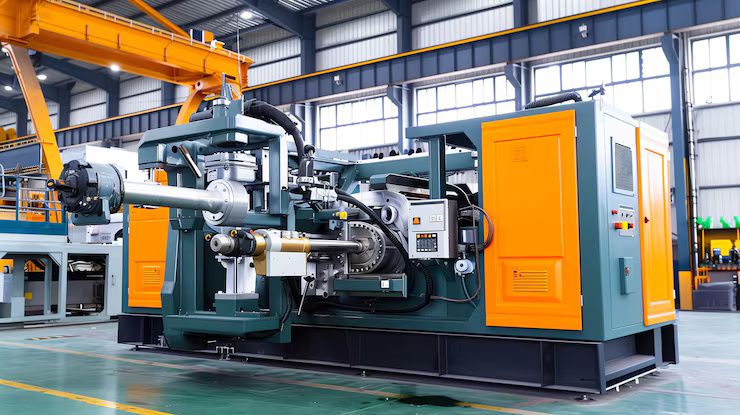

A die casting machine is an industrial manufacturing system used to produce metal components by forcing molten metal into a mold cavity under high pressure. This process is known as high pressure die casting and is widely used for producing precise, complex shapes with smooth surfaces.
Die casting originated in the 19th century for printing applications and evolved into a core process in modern manufacturing industries such as automotive, aerospace, electronics, and consumer goods. Today, die casting machines are essential for mass production of metal parts with consistent dimensions and minimal finishing.
The main types of die casting machines include:
-
Hot chamber die casting machines
-
Cold chamber die casting machines
Hot chamber machines are typically used for metals with lower melting points such as zinc and magnesium. Cold chamber machines are used for metals like aluminum, which require higher processing temperatures.
The process relies on key components:
-
Injection system
-
Die (mold) cavity
-
Clamping unit
-
Cooling system
Modern machines incorporate automated casting systems and digital controls to improve efficiency and reduce material waste.
Importance
Die casting machines play a critical role in industrial manufacturing and global supply chains.
Precision Manufacturing
High pressure die casting enables production of components with tight tolerances and complex geometries. This is essential for industries requiring accuracy, such as automotive engine parts and electronic housings.
Material Efficiency
The process minimizes excess material by using reusable molds and controlled injection systems. This supports efficient use of metals such as aluminum and zinc.
High Production Output
Automated casting systems allow continuous production, making die casting suitable for large-scale manufacturing.
Surface Quality
Components produced through die casting often require minimal machining due to smooth finishes and consistent shapes.
Applications Across Industries
Die casting machines are used in:
-
Automotive manufacturing (engine blocks, transmission parts)
-
Electronics (device casings, connectors)
-
Aerospace components
-
Industrial machinery
High CPC keywords such as “aluminum die casting,” “zinc die casting process,” and “industrial manufacturing equipment” reflect strong interest in this technology across global markets.
Types of Die Casting Machines
Hot Chamber Die Casting
-
Suitable for zinc, magnesium, and lead alloys
-
Faster cycle times
-
Injection mechanism submerged in molten metal
Cold Chamber Die Casting
-
Used for aluminum die casting
-
Molten metal poured into chamber before injection
-
Handles higher melting temperatures
Vacuum Die Casting
-
Reduces air entrapment
-
Improves structural integrity
Semi-Solid Die Casting
-
Uses partially solidified metal
-
Enhances mechanical properties
Materials Used in Die Casting
The selection of material affects strength, weight, corrosion resistance, and cost-efficiency.
Common Materials
-
Aluminum alloys
-
Zinc alloys
-
Magnesium alloys
-
Copper-based alloys
Material Properties Comparison Table
| Material Type | Strength | Weight | Corrosion Resistance | Common Use |
|---|---|---|---|---|
| Aluminum | High | Light | Good | Automotive parts |
| Zinc | Moderate | Medium | Excellent | Small components |
| Magnesium | Moderate | Very Light | Moderate | Aerospace parts |
| Copper Alloys | High | Heavy | Good | Electrical components |
Importance of Mold Design
Casting mold design is a crucial factor in die casting efficiency and product quality.
Key Design Elements
-
Gate and runner system for metal flow
-
Cooling channels for temperature control
-
Venting systems to release trapped air
-
Ejector pins for part removal
Proper mold design helps:
-
Reduce defects such as porosity
-
Improve dimensional accuracy
-
Increase production speed
Recent Updates
In 2025–2026, several advancements influenced die casting technology.
Automation Expansion (2025)
Manufacturers increased adoption of robotic handling systems for material transfer and part extraction.
Digital Monitoring Systems (Late 2025)
Integration of sensors and IoT-based monitoring improved real-time tracking of temperature, pressure, and cycle time.
Sustainable Manufacturing Trends (2026)
Focus on energy-efficient furnaces and recyclable metal usage increased across industries.
Lightweight Material Demand
Automotive manufacturers expanded use of aluminum die casting to reduce vehicle weight and improve fuel efficiency.
Industrial leaders such as Buhler Group and Italpresse Gauss continued developing automated casting systems and smart manufacturing solutions.
Laws or Policies
Die casting operations are regulated by industrial safety and environmental policies.
Workplace Safety Regulations
-
Machinery safety standards
-
Operator training requirements
-
Protective equipment guidelines
In the United States, organizations such as the Occupational Safety and Health Administration establish workplace safety standards.
Environmental Regulations
-
Emission control for furnaces
-
Waste management policies
-
Recycling requirements for metal scrap
In India, industrial compliance may involve guidelines from the Ministry of Environment, Forest and Climate Change.
Quality Standards
-
ISO standards for manufacturing processes
-
Product certification requirements
These regulations ensure safe operation, environmental responsibility, and product reliability.
Tools and Resources
Various tools support die casting design, analysis, and production.
Design Software
-
CAD (Computer-Aided Design) tools for mold design
-
CAM (Computer-Aided Manufacturing) systems
Simulation Tools
-
Casting simulation software to predict defects
-
Thermal analysis tools
Monitoring Systems
-
IoT-based machine monitoring platforms
-
Real-time production dashboards
Industry Standards and References
-
ISO manufacturing guidelines
-
Engineering handbooks
Organizations such as International Organization for Standardization provide frameworks for quality and process consistency.
Process Flow Overview
| Step | Description |
|---|---|
| Mold Preparation | Cleaning and lubrication of die |
| Metal Melting | Heating metal to required temperature |
| Injection | Forcing molten metal into mold |
| Cooling | Solidification of metal |
| Ejection | Removal of finished part |
FAQs
What is a die casting machine used for?
It is used to produce metal components by injecting molten metal into molds under high pressure.
What is the difference between hot chamber and cold chamber die casting?
Hot chamber machines are used for low melting point metals, while cold chamber machines are used for metals like aluminum.
Why is aluminum widely used in die casting?
Aluminum is lightweight, strong, and corrosion-resistant, making it suitable for automotive and industrial applications.
What are common defects in die casting?
Typical defects include porosity, surface imperfections, and incomplete filling, often influenced by mold design and process control.
How does automation improve die casting?
Automation increases consistency, reduces manual errors, and enhances production efficiency.
Conclusion
Die casting machines are fundamental to modern industrial manufacturing, enabling the production of precise and durable metal components. With applications across automotive, electronics, and aerospace sectors, the process supports large-scale production while maintaining quality standards.
Recent advancements highlight increased use of automation, digital monitoring, and sustainable manufacturing practices. Regulatory frameworks ensure safety, environmental compliance, and product reliability.
Understanding materials, machine types, and mold design helps clarify how die casting contributes to efficient and scalable production. As technology continues to evolve, die casting remains a key method in advanced manufacturing systems worldwide.
