Tunnel Boring Machines (TBMs) are large, specialized machines designed to excavate tunnels through soil, rock, and mixed ground conditions. They are used to create underground passages for transport systems, utilities, water networks, and other critical infrastructure. TBMs exist to provide a controlled, efficient, and safer alternative to traditional drilling and blasting methods.
As cities expanded and surface space became limited, underground construction emerged as a practical solution. TBMs allow engineers to excavate tunnels with precision while minimizing surface disruption. These machines are commonly used in metro rail systems, road tunnels, water conveyance tunnels, and underground utility corridors.

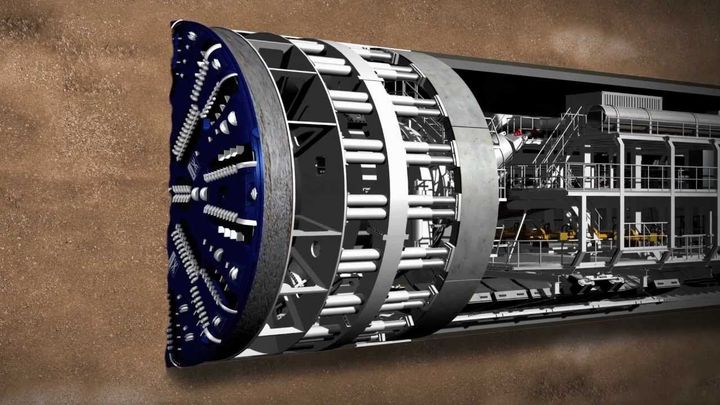

A typical TBM is cylindrical, with a rotating cutting head at the front that breaks ground. Behind the cutting head, the machine installs tunnel lining segments, allowing excavation and structural support to occur simultaneously. This continuous process improves accuracy and reduces environmental impact compared to conventional tunneling approaches.
Importance: Why Tunnel Boring Machines Matter Today
Tunnel Boring Machines play a critical role in modern infrastructure development. Rapid urbanization, population growth, and increasing demand for efficient transportation have made underground construction more important than ever.
TBMs help solve several key challenges:
-
Limited surface land in dense urban areas
-
Traffic congestion caused by surface construction
-
Safety risks associated with open excavation
-
Environmental concerns such as noise, vibration, and dust
They affect a wide range of stakeholders, including urban planners, civil engineers, transport authorities, environmental regulators, and the general public. By enabling deeper and longer tunnels with high accuracy, TBMs support sustainable infrastructure growth while reducing disruption to daily life.
From metro rail expansions to water supply tunnels, TBMs contribute to long-term resilience and efficiency of essential public systems.
Working Principles: How Tunnel Boring Machines Operate
A Tunnel Boring Machine works through a continuous excavation and support process. While designs vary depending on ground conditions, most TBMs share similar operational principles.
The main working stages include:
-
Ground excavation using a rotating cutter head
-
Removal of excavated material through conveyors or slurry systems
-
Installation of precast concrete lining segments
-
Forward movement using hydraulic thrust systems
TBMs are selected based on geological conditions. Soft ground TBMs are used in clay or sand, while hard rock TBMs are designed for stable rock formations. Earth Pressure Balance (EPB) and slurry TBMs help control ground pressure in unstable soils.
Core Components of a TBM
-
Cutter head with disc cutters or cutting tools
-
Thrust cylinders for forward movement
-
Conveyor or slurry transport system
-
Segment erector for tunnel lining
-
Guidance and control systems
Key Types of Tunnel Boring Machines
Different TBM types are designed for specific ground conditions. Choosing the correct type is essential for safety and efficiency.
| TBM Type | Ground Condition | Common Applications |
|---|---|---|
| Hard Rock TBM | Stable rock | Railway and road tunnels |
| EPB TBM | Soft soil | Urban metro systems |
| Slurry TBM | Water-bearing soil | River crossings |
| Mixed Shield TBM | Variable geology | Complex urban areas |
Each type manages ground pressure differently to prevent collapse and settlement.
Recent Updates: Trends and Developments (2025)
Over the past year, Tunnel Boring Machine technology has seen notable advancements focused on automation, safety, and sustainability.
In early 2025, several large metro projects in Asia and Europe adopted AI-assisted monitoring systems for real-time ground behavior analysis. These systems help predict tool wear, detect anomalies, and improve alignment accuracy.
By mid-2025, manufacturers increasingly integrated digital twin technology, allowing engineers to simulate tunneling conditions before excavation begins. This trend has improved planning accuracy and reduced unexpected geological risks.
Environmental performance has also improved. New designs introduced in late 2024 and early 2025 focus on energy-efficient motors and optimized cutter head designs to reduce power consumption during long tunnel drives.
Laws and Policies: Regulatory Framework in India
In India, Tunnel Boring Machine projects are governed by multiple regulatory and technical frameworks to ensure safety, environmental protection, and structural reliability.
Key regulatory influences include:
-
Guidelines from the Ministry of Road Transport and Highways (MoRTH)
-
Metro rail standards issued by the Ministry of Housing and Urban Affairs
-
Environmental clearance requirements under national environmental regulations
-
Safety standards aligned with Indian Standards (IS) codes
Large tunneling projects must also comply with environmental impact assessment requirements, especially in urban and ecologically sensitive zones. These policies influence machine selection, tunneling depth, vibration limits, and waste handling methods.
Tools and Resources Related to Tunnel Boring Machines
Several digital and technical resources support TBM planning, operation, and monitoring. These tools help engineers manage risk and improve accuracy.
Commonly used resources include:
-
Tunnel design and simulation software
-
Geological data modeling platforms
-
Real-time monitoring dashboards
-
Construction project management systems
-
Technical handbooks and international tunneling guidelines
Example TBM Planning Tools
| Tool Type | Purpose |
|---|---|
| Geotechnical modeling software | Ground condition analysis |
| Alignment simulation tools | Tunnel route optimization |
| Machine performance analytics | Productivity tracking |
| Safety monitoring systems | Risk detection |
These resources support data-driven decision-making throughout the tunneling lifecycle.
Frequently Asked Questions About Tunnel Boring Machines
What is the main purpose of a Tunnel Boring Machine?
A Tunnel Boring Machine is used to excavate underground tunnels safely and efficiently while minimizing surface disturbance.
How deep can TBMs operate?
TBMs can operate at significant depths, depending on geological conditions and tunnel design, often exceeding several tens of meters below ground.
Are TBMs suitable for urban areas?
Yes. TBMs are widely used in cities because they reduce noise, vibration, and surface disruption compared to open excavation.
How is ground stability maintained during tunneling?
TBMs use pressure control systems, such as earth pressure balance or slurry support, to stabilize the surrounding ground during excavation.
What happens after the tunnel is excavated?
Precast concrete segments installed by the TBM form the permanent tunnel lining, providing long-term structural support.
Conclusion
Tunnel Boring Machines are essential tools for modern underground construction. They enable safe, precise, and efficient tunneling in a wide range of geological conditions. As infrastructure demands grow and urban environments become denser, TBMs provide a practical solution to complex construction challenges.
Ongoing advancements in automation, digital monitoring, and environmental performance continue to enhance TBM capabilities. Supported by regulatory frameworks and advanced engineering tools, Tunnel Boring Machines remain a cornerstone of sustainable infrastructure development worldwide.
