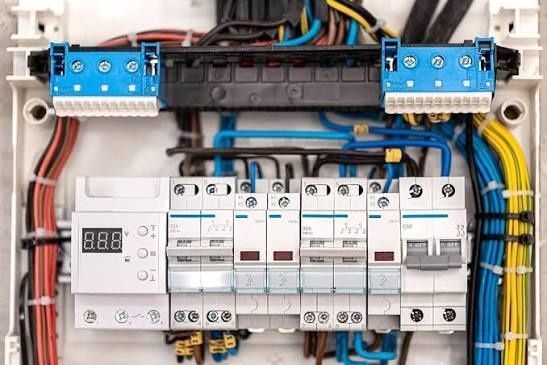

Circuit breakers are safety devices designed to control and interrupt electrical current when abnormal conditions occur.
Electrical circuit breakers developed as a safer and more practical alternative to protection methods that required components to be replaced after every electrical fault. They are now widely used in homes, commercial buildings, factories, utilities, and electrical switchgear systems.
A circuit breaker normally allows electricity to flow through a circuit. When it detects excessive current, a short circuit, or another defined fault condition, its internal mechanism opens the electrical path. This interruption helps limit damage to wiring, equipment, and connected systems.
How circuit breaker operation works
Different breaker designs use thermal, magnetic, electronic, or combined detection methods. A circuit breaker protection system monitors electrical conditions and activates a trip mechanism when operating limits are exceeded.
Common types include:
- Low voltage circuit breaker: Common in buildings and low-voltage distribution networks.
- Molded case circuit breaker: Used where adjustable protection and higher current capacity may be required.
- Air circuit breaker: Uses air as part of the arc interruption process.
- Medium voltage circuit breaker: Applied in industrial facilities and distribution networks.
- Vacuum circuit breaker: Interrupts electrical arcs inside a vacuum chamber.
- High voltage circuit breaker: Used in transmission networks and large power systems.
| Circuit Breaker Type | Typical Application | Main Function |
|---|---|---|
| Low voltage | Buildings and small facilities | Protects low-voltage circuits |
| Molded case | Commercial and industrial systems | Handles higher current levels |
| Air circuit breaker | Main distribution panels | Controls large electrical loads |
| Vacuum circuit breaker | Medium-voltage networks | Interrupts faults in a vacuum |
| High voltage | Transmission infrastructure | Protects high-voltage networks |
Importance
Circuit breakers matter because electrical faults can damage equipment, interrupt operations, and create fire or shock hazards. Commercial circuit breakers and industrial circuit breakers help isolate affected sections before a fault spreads through a wider electrical network.
For everyday users, breaker protection supports safer operation of lighting, appliances, machinery, and building systems. In industrial environments, industrial electrical protection becomes more complex because motors, transformers, production equipment, and large electrical loads may require coordinated protection.
Protection across power systems
A power distribution circuit breaker can separate a faulty circuit while allowing unaffected parts of a network to continue operating when the system is properly designed. Industrial power protection systems often combine breakers with relays, sensors, monitoring equipment, and electrical switchgear systems.
Correct breaker selection also matters. Voltage rating, current capacity, interruption rating, operating environment, and expected fault levels must be considered when matching a breaker to an electrical system.
Recent Updates
From 2024–2026, the general trend in circuit breaker technology has focused on digital monitoring, automation, energy management, and improved fault information. A smart circuit breaker may communicate electrical data to a building or industrial monitoring platform, helping operators understand load conditions and breaker status.
Modern industrial circuit breakers increasingly use electronic trip units and communication functions. These developments support remote monitoring, predictive maintenance planning, and faster identification of abnormal electrical conditions.
Another trend is greater integration between circuit breaker protection systems and digital power management platforms. This allows electrical data from breakers, meters, sensors, and switchgear to be viewed within a connected monitoring environment.
Laws or Policies
In India, electrical installations are shaped by national safety rules, technical standards, and requirements administered by relevant authorities. The Central Electricity Authority regulations address safety measures for electrical supply and installations, while standards published by the Bureau of Indian Standards provide technical guidance for electrical equipment.
Circuit breakers used in installations may need to follow applicable Indian Standards and related IEC-based requirements depending on voltage level, equipment type, and application. Building codes and local electrical rules may also influence installation practices.
A circuit breaker manufacturer generally designs and tests equipment according to the standards applicable to the intended breaker category. Compliance requirements can differ between a low voltage circuit breaker, medium voltage circuit breaker, and high voltage circuit breaker.
Tools and Resources
Several resources can help people understand circuit breaker selection and electrical protection concepts:
- Electrical load calculators can estimate expected current based on power, voltage, and system type.
- Short-circuit calculation tools help qualified professionals study possible fault current levels.
- Breaker coordination software can examine how multiple protection devices respond to faults.
- Manufacturer technical documents provide ratings, trip curves, operating limits, and installation information.
- BIS and IEC standards provide technical frameworks for electrical equipment and testing.
- Single-line diagram templates help illustrate how breakers, transformers, panels, and loads are connected.
These resources support general understanding, but detailed electrical system design and installation require appropriate technical knowledge.
FAQs
What are circuit breakers used for?
Circuit breakers interrupt electrical current when conditions such as overloads or short circuits exceed defined limits. They help protect wiring, equipment, and electrical distribution systems.
What is the difference between low voltage and high voltage circuit breakers?
A low voltage circuit breaker is designed for lower-voltage distribution systems commonly found in buildings and smaller facilities. A high voltage circuit breaker is designed for transmission networks and other systems operating at much higher voltages.
Where are industrial circuit breakers commonly used?
Industrial circuit breakers are used in factories, processing facilities, power distribution systems, motor control systems, and large electrical installations. Their ratings and protection functions depend on the equipment and electrical network.
How does a smart circuit breaker differ from a traditional breaker?
A smart circuit breaker may include digital measurement, communication, remote status monitoring, or integration with energy management systems. Its main protection purpose remains similar to that of a conventional breaker.
What is a molded case circuit breaker?
A molded case circuit breaker is an enclosed protective device commonly used in commercial and industrial electrical systems. It can handle higher current levels than many small branch-circuit breakers and may include adjustable trip settings.
Conclusion
Circuit breakers are essential components in modern electrical protection and power distribution. Different designs, including air circuit breaker, vacuum circuit breaker, molded case circuit breaker, and smart circuit breaker technologies, address different voltage levels and operating conditions. Current developments are increasing the use of digital monitoring and connected protection systems. Standards and electrical safety rules help shape how these devices are designed, tested, and applied.
